Electric mopeds and low-speed urban vehicles

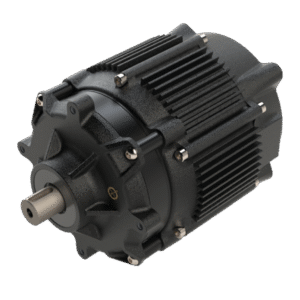

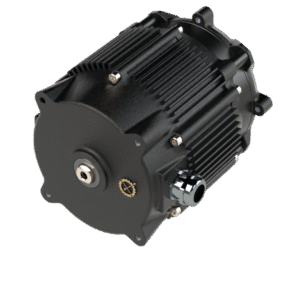

1.5kW Powertrain
1.5kW Powertrain
Compact Drive. High Torque. Maximum Versatility.
This all-in-one powertrain combines a high-efficiency motor, a tightly coupled controller, and a modular 1:5 gearbox, delivering a punch far beyond its size. Rated at 750W and 4Nm (peaking at 1.5kW / 8Nm), the gearbox effectively multiplies torque output, enabling a minimum of 20–40Nm at the wheel for low-speed
India’s First Integrated Powertrain system.
Compact Drive. High Torque. Maximum Versatility.
This all-in-one powertrain combines a high-efficiency motor, a tightly coupled controller, and a modular 1:5 gearbox, delivering a punch far beyond its size. Rated at 750W and 4Nm (peaking at 1.5kW / 8Nm), the gearbox effectively multiplies torque output, enabling a minimum of 20–40Nm at the wheel for low-speed, high-load applications. Its integrated design makes it ideal for space-constrained vehicles that demand high torque at low speeds—offering reliability, simplicity, and ease of integration.
All you have to do primarily is plug your battery, throttle and display and you are good to go! This system has a controller built-in. A complete hassle-free solution!
Parameters
Value
Power (W) - Peak
1500
Power (W) - Nominal
750
Torque (Nm)) - Peak
8
Torque (Nm) - Nominal
4
Gearbox (optional)
1:5
Speed (rpm)- max
2200
Speed (rpm)- Rated
1800
Voltage (V)
48

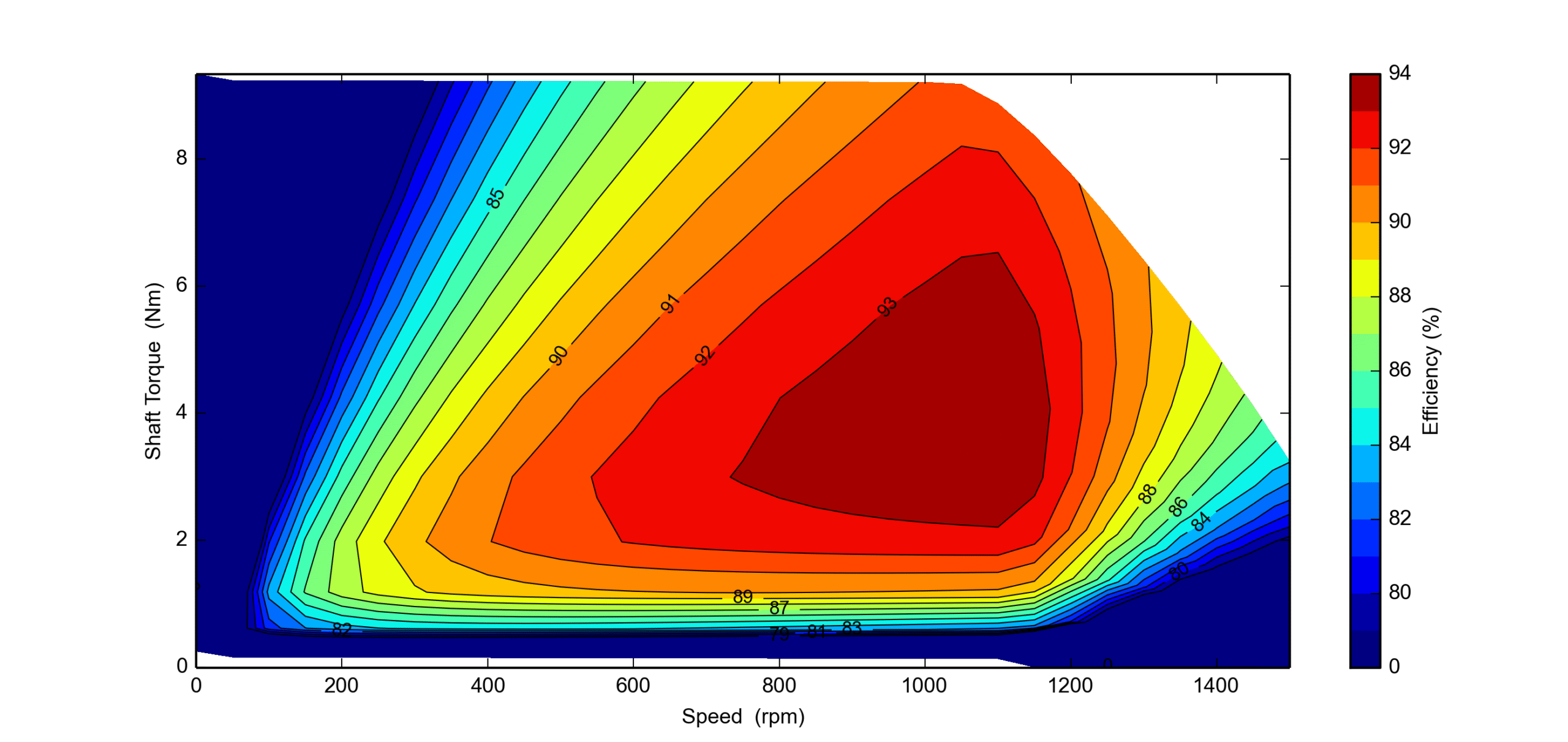

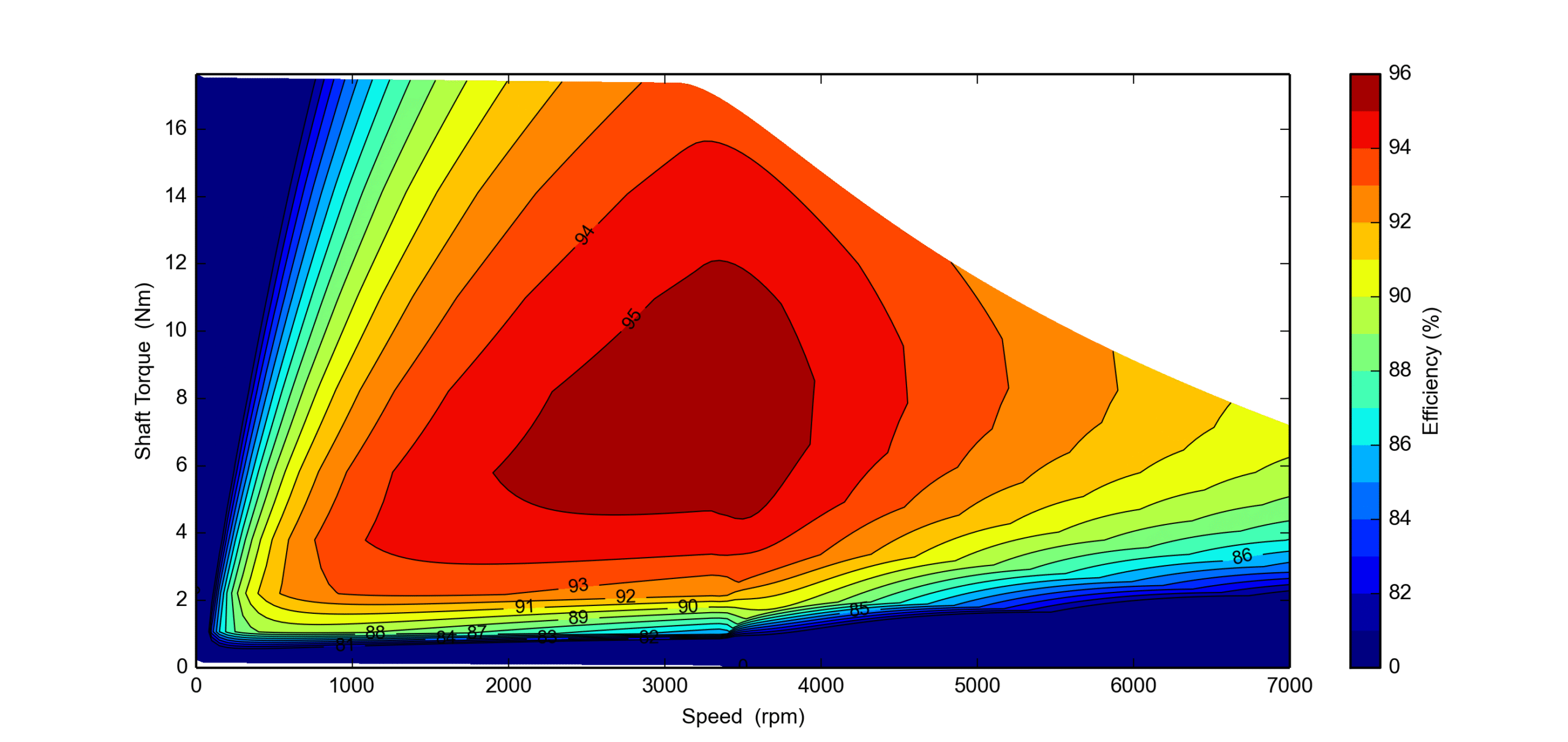

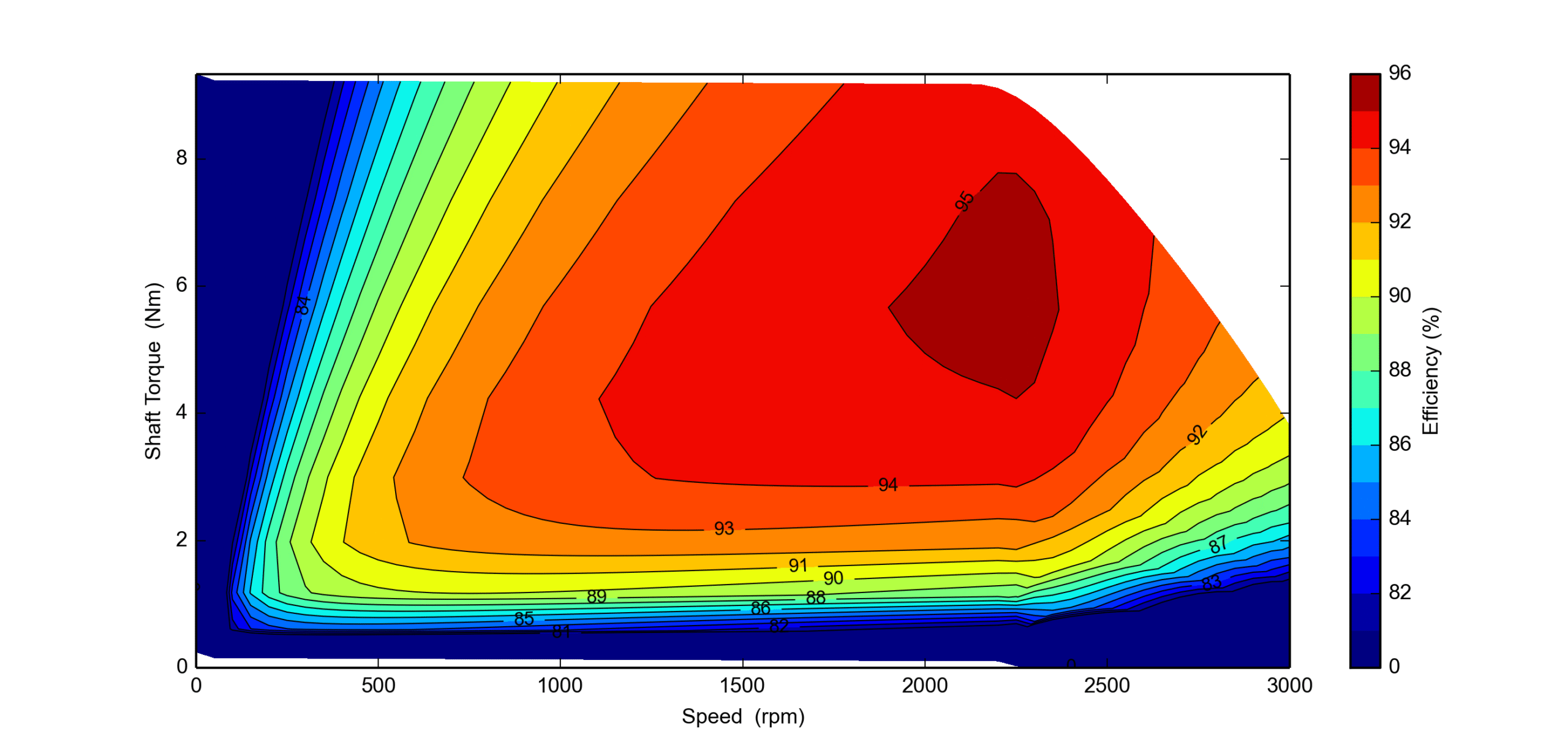

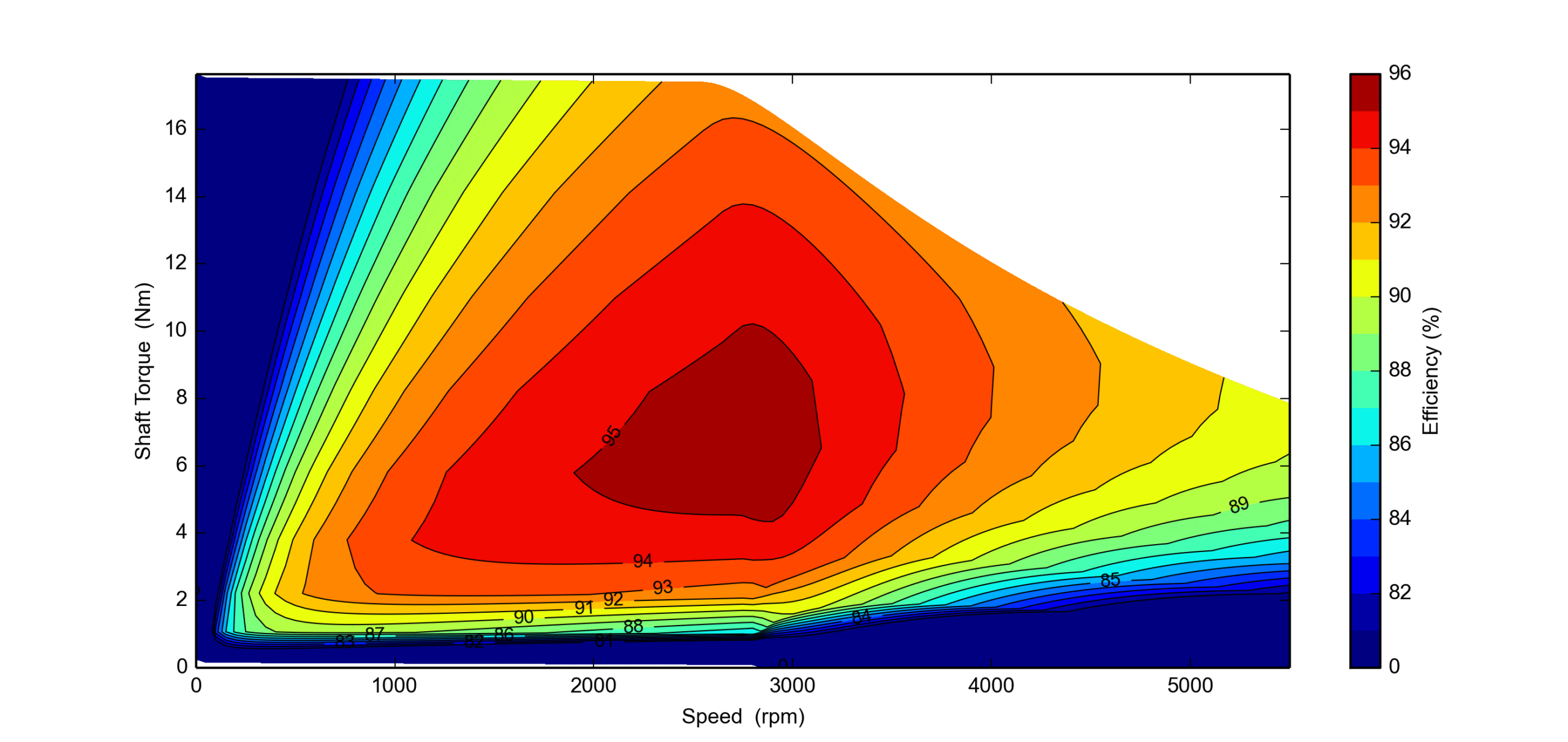

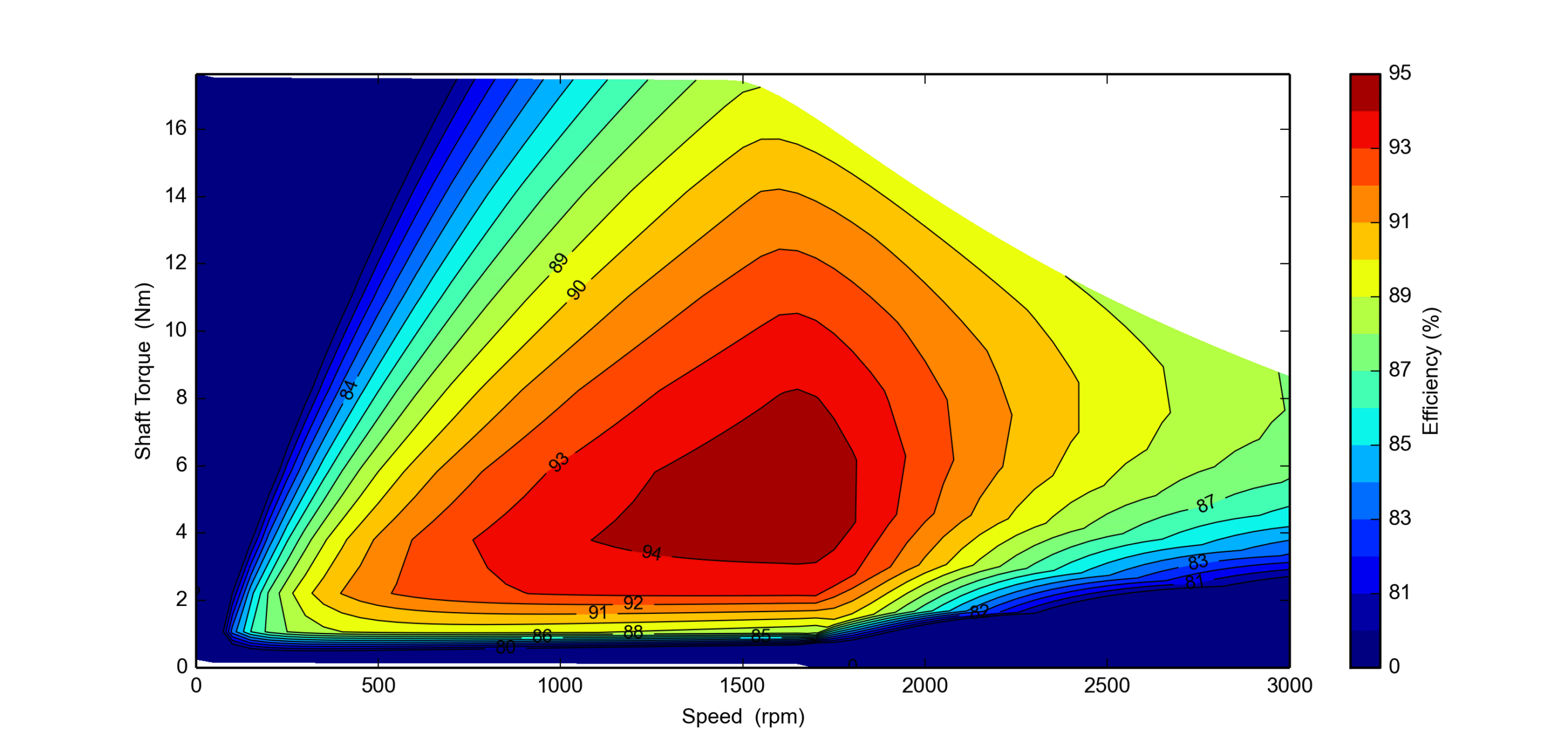

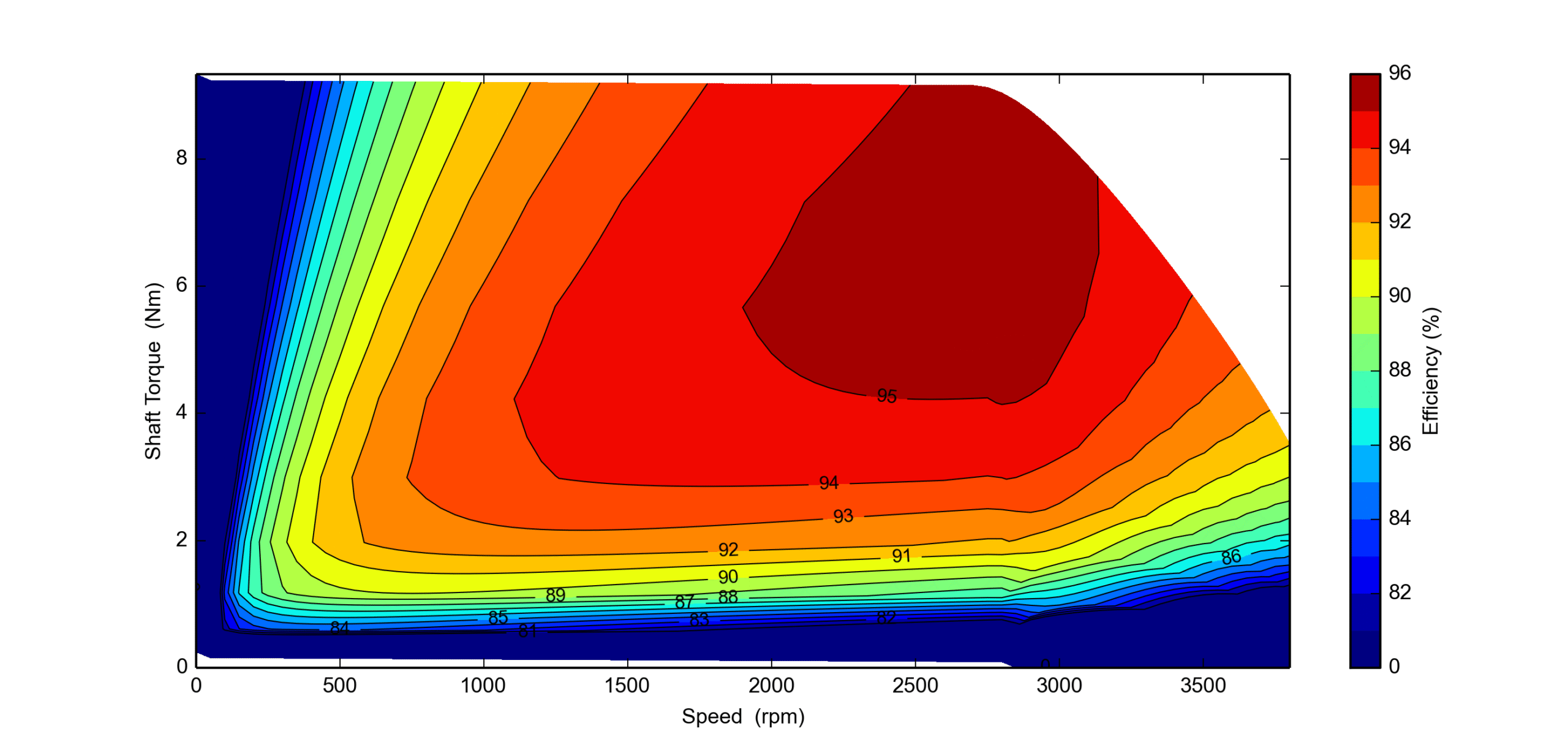

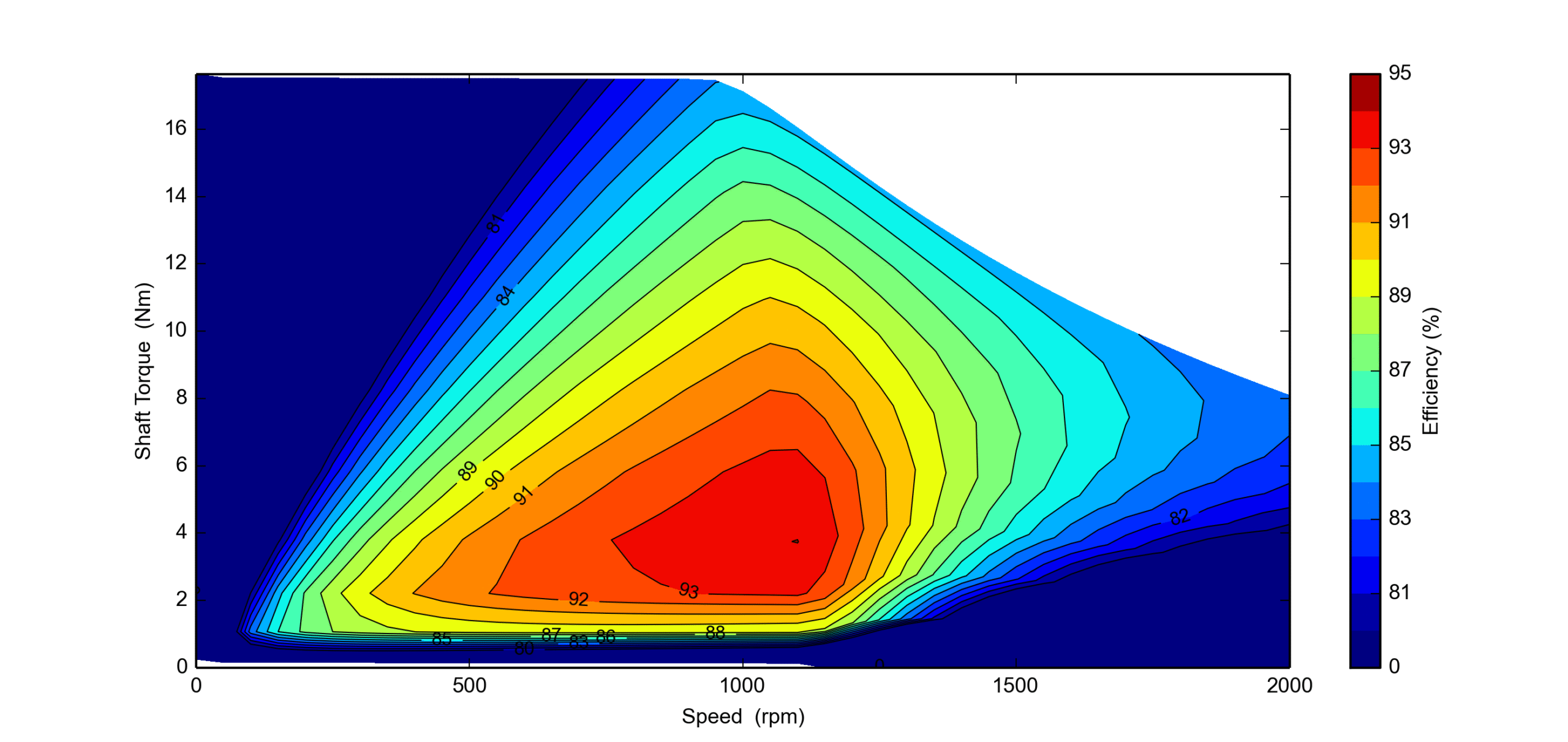

Efficiency (%)
>90
Type
PMSM
Controller
Integrated
Mass (kg) (with Gearbox)
7.2
Ingress Protection
IP67
Dimensions OD x L (excluding shaft)
146 x 186
Potential Applications
Specification
