Electric mini-tractors & agri implements
10kW Powertrain
10KW Powertrain Specs
Built for Torque. Ready for Fields.

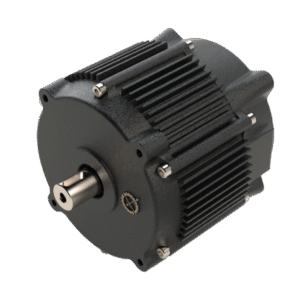

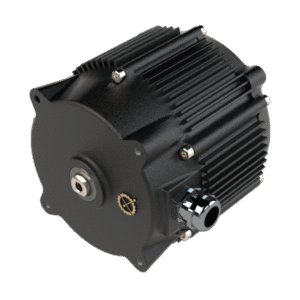

Designed to dominate in torque-heavy environments, this 10kW system delivers 60Nm of peak torque—well-suited for electric mini tractors, agri-tech EVs, and off-road utility vehicles. While the motor and controller are separate in packaging, their software-level synergy ensures optimized performance, diagnostics, and control.
India’s First Integrated Powertrain system.
Built for Torque. Ready for Fields.
Designed to dominate in torque-heavy environments, this 10kW system delivers 60Nm of peak torque—well-suited for electric mini tractors, agri-tech EVs, and off-road utility vehicles. While the motor and controller are separate in packaging, their software-level synergy ensures optimized performance, diagnostics, and control. Rated at 5kW / 30Nm and topping out at 2500 rpm, it can handle high load transients and rugged terrains without compromise.
You don’t have to worry about sourcing a separate controller and undergoing the integration process with your system. We provide a complete Powertrain solution!
Parameters
Value
Power (W) - Peak
10000
Power (W) - Nominal
5000
Torque (Nm)) - Peak
60
Torque (Nm) - Nominal
30
Speed (rpm)- max
2500
Speed (rpm)- Rated
1800
Voltage (V)
48 - 96
Efficiency (%)
>90
Type
IPMSM
Controller
FOC
(CAN Based)
Mass (kg)
17
Ingress Protection
IP67
Dimensions OD x L (excluding shaft)
186 x 140
Potential Applications
Specification
Book a 1:1 with Our Engineering Team
Whether you're prototyping a new vehicle or upgrading factory automation, we can help you spec the right motor and controller.
Book A Call Now
