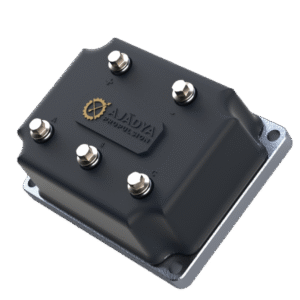

Low Voltage High Power 300A Controller
Low Voltage High Power 300A Controller
High-Performance, System-Integrated.
This system separates motor and controller in physical packaging but offers a unified interface through tight software-level integration. With a rated output of 3kW and 14Nm torque (peak: 6.5kW / 28Nm), it's tailor-made for high-performance two-wheelers, sports scooters, and cargo vehicles—delivering agility and responsiveness akin to the performance of 2w scooter segment.
India’s First Integrated Powertrain system.
High-Performance, System-Integrated.
This system separates motor and controller in physical packaging but offers a unified interface through tight software-level integration. With a rated output of 3kW and 14Nm torque (peak: 6.5kW / 28Nm), it’s tailor-made for high-performance two-wheelers, sports scooters, and cargo vehicles—delivering agility and responsiveness akin to the performance of 2w scooter segment. High rpm range up to 3500 allows for flexible gear ratios or direct drive systems.
You don’t have to worry about sourcing a separate controller and undergoing the integration process with your system. We provide a complete Powertrain solution!
Parameters
Value
Current (Arms) - Peak (for 90 secs)
300
Current (Arms) - Continuous
150
Operating Voltage (V)
24-84
Efficiency (%)
> 96
Type
Vector Control (FOC)
Feedback
Sensorless, Sensored (Hall, Encoder)
Mass (kg)
3
Voltage (V)
48
Ingress Protection
IP67
Dimensions L x B x H
250 x 216 x 80
Potential Applications
Specification
